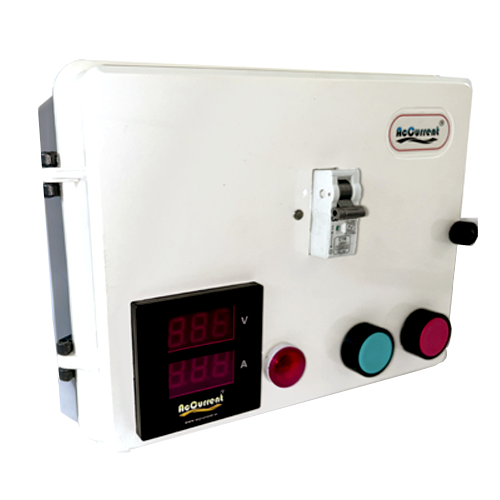

Digital Single Phase Starter

  • This model is suitable up to 5HP motor and submersible pump
  • BCH type Contactor provided
  • Overload protection by MCB(6-32amp)
  • Run Capacitor :
  • Start Capacitor :
  • Input : P (Phase), N (Neutral) (sup 220 – 270 VAC)
  • Output : R, Y, B (motor or pump connections)
  • Micro controller based Digital starter panel for motor
  • Digital Volt and ampere meter are provided to see system voltage and load
  • start capacitor provided for starting torque
  • Stop button provided to stop motor
  • Start button provided to start motor
  • Available in PVC and MATEL. body
  • Shock proof PVC BODY AND POWDER COTADE MATEL BODY
  • 32amp power in and out put motor terminal

    HP 0.5 HP 0.75 HP 1 HP 1.5 HP 2 HP
    Capacitor Running 25 MFD 30 MFD 36 MFD 50-MFD 70 MFD
    Starting 60-80 80-100 100-120 120-150 150-200
    Phase •Single-phase
    Over Load Protector •MCB
    Power Supply •240
    Power Rating •0.5 kW
    Motor Power •0.5HP UP TO 5HP
